Testo 770-3 Cable-Grab Clamp Meter
Couldn't load pickup availability
- Easy to operate thanks to the fully retractable pincer arm
- Auto AC/DC and large two-line display
- Improved TRMS method
- Bluetooth connection to your smartphone (with the Testo Smart App)
Non-contact measurement on tightly packed cables is really easy and reliable with the Testo 770-3 clamp meter. Its innovative grab mechanism will make your work easy. The most powerful model in the clamp meter series, it offers lots of additional functions for those challenging tasks that you are faced with on a daily basis, e.g. communication with the Testo smart app via Bluetooth.
Overview

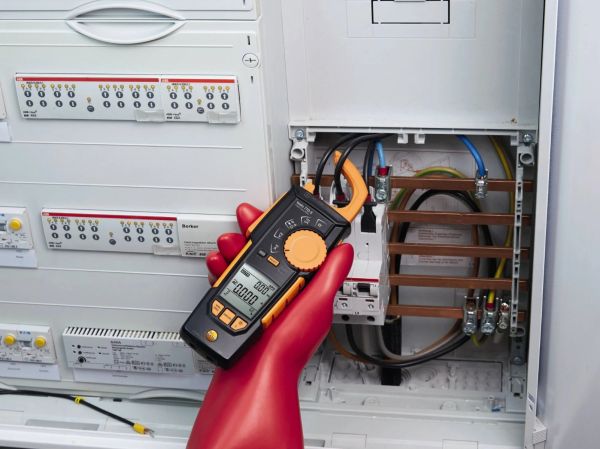

The three instruments in the testo 770 clamp meter family are ideally suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique grab mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also ensures reliable work: in the current and voltage area, all three instruments detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.
Overview
The three instruments in the testo 770 clamp meter family are ideally suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique grab mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also ensures reliable work: in the current and voltage area, all three instruments detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.testo 770-3 Clamp Meter includes batteries, 1 set of measuring cables. Additional features: True RMS measurement function, μA measurement range, integrated temperature adapter for all type K thermocouples. Connects to testo Smart App via bluetooth for performance measurement function and downloadable reports. Also auto-calculates Power/Wattage.
Technical Data
Temperature - TC Type K (NiCr-Ni) | |
---|---|
Measuring range |
-20 to +500 °C |
Accuracy |
±1 °C (0 to +100 °C) |
Resolution |
0.2 °C |
DC voltage | |
---|---|
Measuring range |
1.0 to 600.0 V |
Resolution |
max. 1 mV |
Accuracy |
± (0.8 % of mv + 3 Digit) |
AC voltage | |
---|---|
Measuring range |
1.0 mV to 600.0 V |
Resolution |
max. 1 mV |
Accuracy |
± (1 % of mv + 3 Digit) |
DC current | |
---|---|
Measuring range |
0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
Resolution |
0.1 (clamp) 0.1 (measuring cables) |
Accuracy |
± (2 % of mv + 5 Digit) (clamp) ± (2 % of mv + 5 Digit) (measuring cables) |
AC current | |
---|---|
Measuring range |
0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
Resolution |
0.1 A (clamp) 0.1 μA (measuring cables) |
Accuracy |
± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables) |
Resistance | |
---|---|
Resolution |
max. 0.01 Ohm |
Measuring range |
0.01 to 60.0 MOhm |
Accuracy |
± (1.5 % of mv + 3 Digit) |
Capacitance | |
---|---|
Resolution |
max. 0.01 nF |
Measuring range |
2 nF to 60.00 mF |
Accuracy |
± (1.5 % of mv + 5 Digit) |
Frequency | |
---|---|
Resolution |
max. 0.1 Hz |
Measuring range |
0.01 Hz to 9999 kHz |
Accuracy |
± (1 % of mv + 1 Digit) |
Active Power | |
---|---|
Measuring range |
0.1 W to 600 kW |
Accuracy |
± (5 % of mv + 5 Digit) |
Resolution |
0.1 W |
Reactive Power | |
---|---|
Measuring range |
0.1 to 600.0 kvar |
Accuracy |
± (10 % of mv + 5 Digit) |
Resolution |
0.1 var |
Apparent Power | |
---|---|
Measuring range |
0.1 VA to 600.0 kVA |
Accuracy |
± 1 Digit |
Resolution |
0.1 VA |
Direct current DC Voltage | |
---|---|
Measuring range |
0.1 W to 600.0 kW |
Accuracy |
± 1 Digit |
Resolution |
max. 0.1 W |
Power Factor | |
---|---|
Measuring range |
-1.00 to +1.00 |
Accuracy |
± (10 % of mv + 5 Digit) |
Resolution |
0.01 |
General technical data | |
---|---|
Operating humidity |
0 to 80.0 %RH |
Weight |
378 g |
Dimensions |
249 x 96 x 43 mm |
Operating temperature |
-10 to +50 °C |
Connectable probes |
1 x temperature probe (adapter required for type K thermocouples) |
System requirements |
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
Product colour |
Black |
Standards |
EN 61326-1; EN 61010-2-032; EN 61140 |
Battery type |
3 AAA micro batteries |
Display type |
LCD (Liquid Crystal Display) |
Display size |
2 lines |
Interface |
2 measuring jacks |
Storage temperature |
-15 to +60 °C |
Overvoltage Category |
CAT IV 600V; CAT III 1000V |
Authorizations |
CSA; CE |
Internal_resistance |
11 MOhm (AC / DC) |
Instrument Measurement Functions | |
---|---|
Diode test |
yes |
Continuity testing |
yes |
Display ligthing |
yes |
Hold |
yes |
MinMax |
yes |
Power Measurement |
yes |
Temperature measurement with adapter |
yes |
True RMS |
yes |
Inrush current measurement |
yes |
Bluetooth |
yes |
Display (counts) |
6,000 |
μA current measuring range |
yes |
Autom. measurement parameter detection |
yes |
