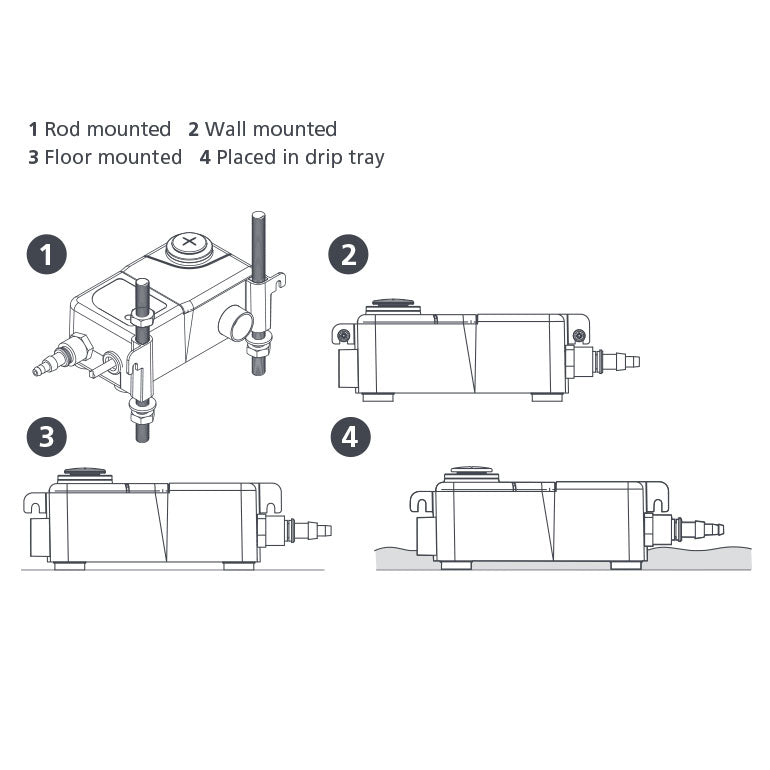

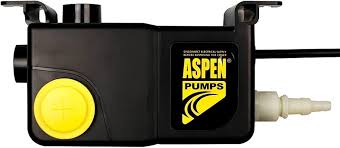

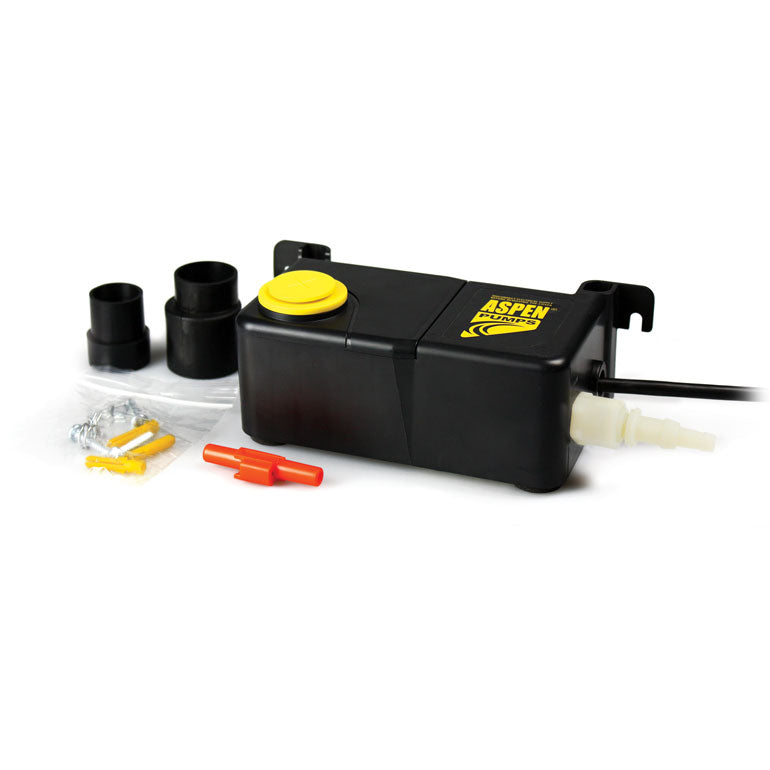

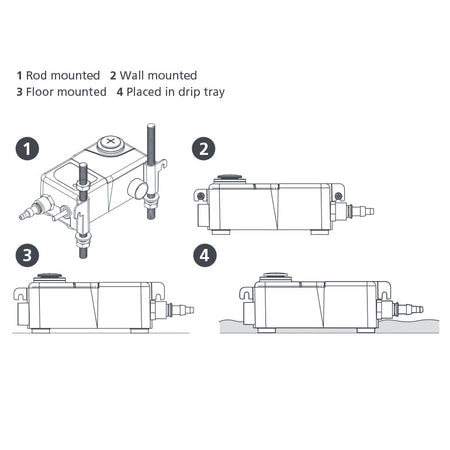

The new and improved Mini Tank pump for air conditioning units up to 46kW. can be wall mounted, floor mounted, in-pan or suspended on M8 / M10 rod.

Using piston technology this is a compact, powerful and multi functional tank pump.

Key Features :

• Four ways to install
• Compact & discreet
• Can be located in drain pan
• Easy maintenance

Specification :

• Max. flow - 35L/h
• Data Based - @ 230 VAC 50Hz
• Max. rec. head - 15m
• Max. unit output - 46kW / 157,000Btu/h
• Inlets - x2 22mm, 12mm & 27mm
• Tank Capacity - 0.24L
• Power supply - 230 VAC, 0.11A, 16W, 50/60Hz
• Outlets - 6mm & 10mm
• Thermal protection - Yes
• Safety switch - 3.0A Normally closed

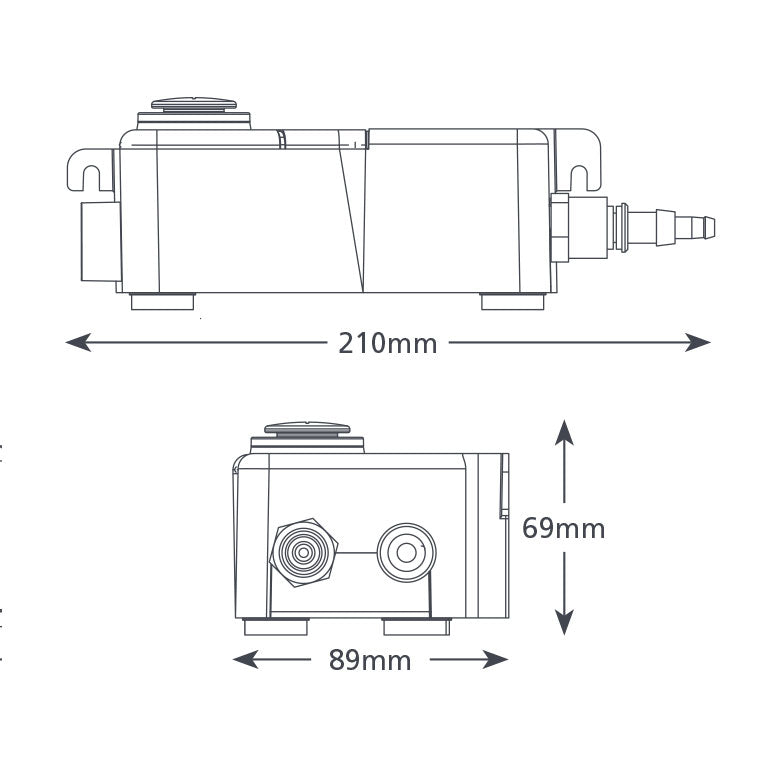

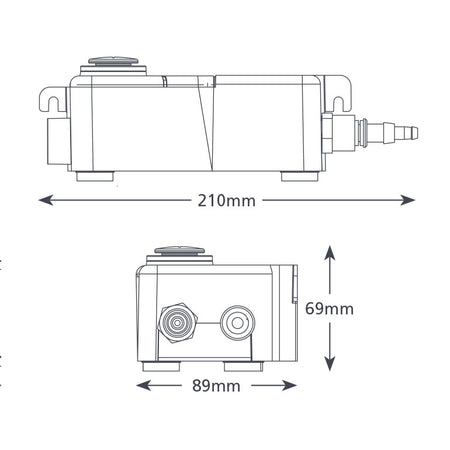

• Dimensions 210 x 69 x 89mm
